Configuring Wifi + Generating Activation Code

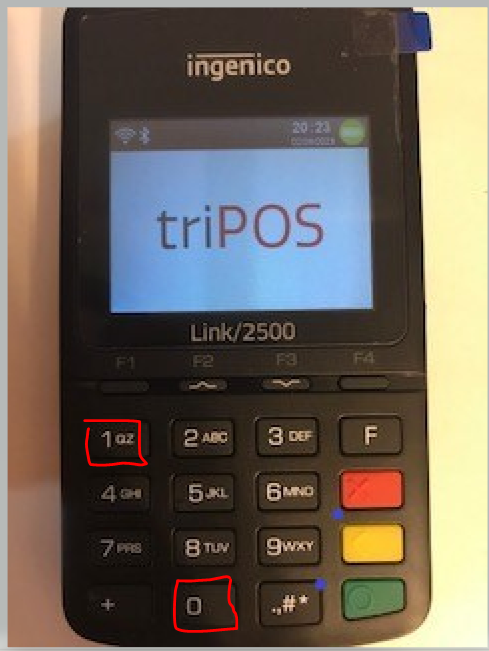

Power the device on to connect the terminal to the wireless and allow it to boot to the TriPOS screen. Once on this screen, tap 0-0-0-1

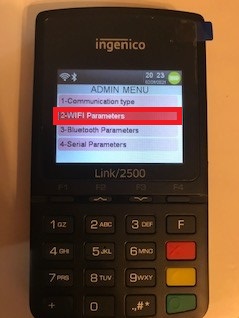

On the next screen, you will use the F2 key to scroll down to WIFI Parameters:

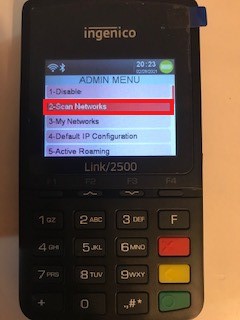

In the Next menu, we will select Scan Network. Once the list of Networks populates, use the F2 key to scroll down and highlight the network we are trying to connect to. Once highlighted, use the green button to select that network

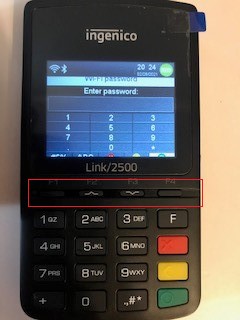

On the next screen, the client will need to enter their password. This can be done in an old-school texting style by repeatedly tapping the numbers for the appropriate letters, or they can use the Function keys at the top to scroll around the On-Screen keyboard.

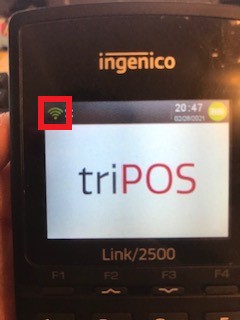

Once the password is entered (Password is case sensitive), the device will show "New Profile OK" and will kick the user back to the main screen, where the wireless connection in the top left should turn green.
Once green, an activation code should populate on the screen. If not, Press and hold the # and Yellow keys; the device will reboot (If plugged in, if unplugged, the device will power down; power the device back on by holding the green key.
Remove/Forget Network
********Please note, the terminal will need to be out of the range of the network to be able to access the menu for this step********
Once the terminal is out of range of the network, we will access the menu using the 0-0-0-1 code and select WiFi Parameters:

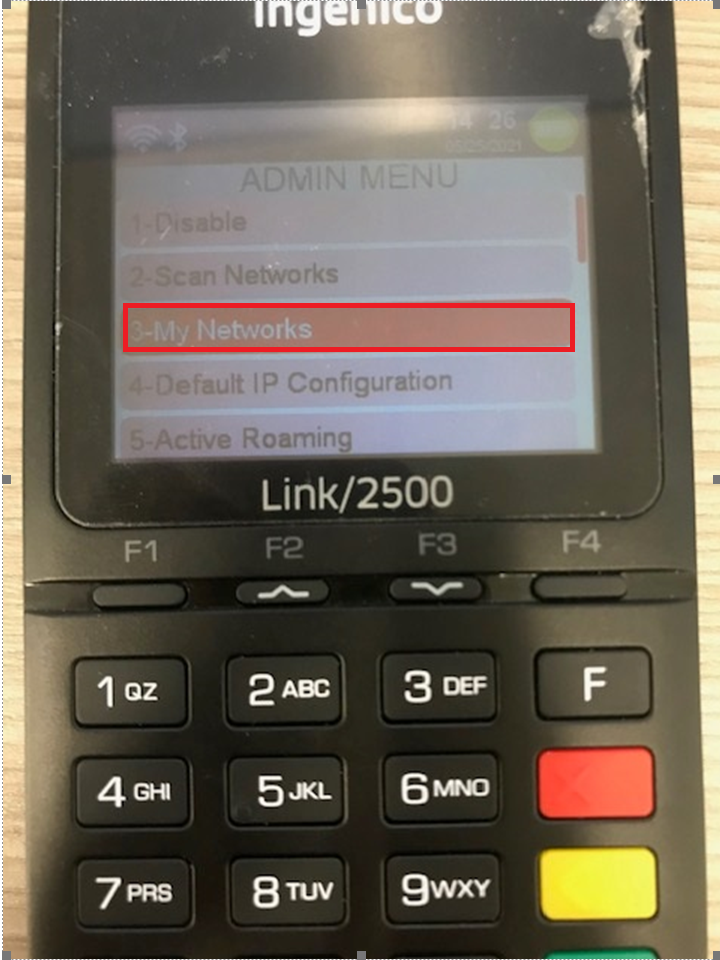

On the next screen, we will highlight and select "My Networks"

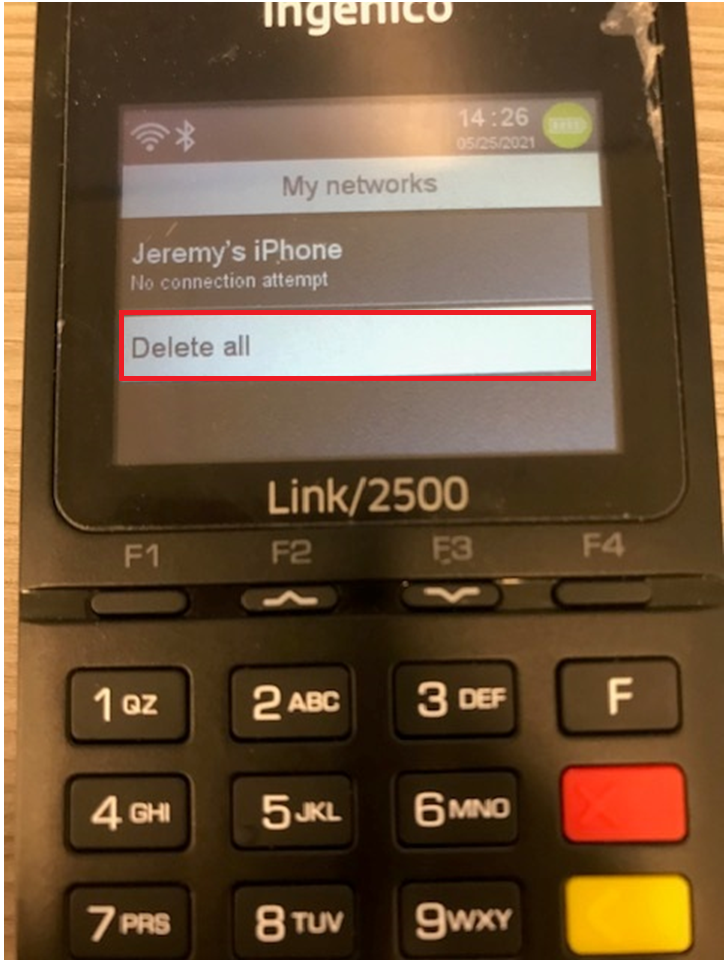

On this last screen, we will select "Delete All", a prompt will appear stating "Remove Profile Ok", indicating that the networks have been removed from the terminal:
Testing the Network Connection
The best way to test the network connection on these terminals will be to enter 0-0-0-1 or 2-6-3-4 codes from the TriPOS screen.
- If the terminal does not respond, this would mean the terminal is connected to the network.
- If the terminal opens a menu, this would mean that the terminal is not connected to the network.
On the password screen, the function keys will control the on-screen keyboard as follows:
(F1) - Scrolls the selection to the left
- (F1) - Scrolls the selection to the left
- (F2) - Scrolls the selection up
- (F3) - Scrolls the selection down
- (F4) scrolls the Selection to the Right
